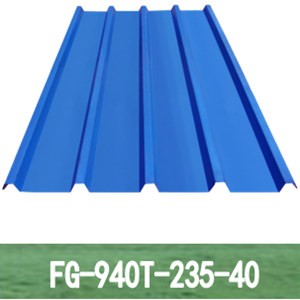

FUGU Anti corrosion Roof Sheets adopt
unsaturated polyester resin as main raw material and non-alkali fiberglass
chopped stitch felt as main reinforced material, plus with weather-resistance
polyester felt and fluorocarbon coating. It is the high density and strength
sheets that produced under high temperature & pressure of 8000KG tensile
force with the current most advanced composite pultrusion technology.
reasonable production prescription, ingredients and design, FUGU Anti corrosion Roof Sheets have overcome
all the shortages of other ordinary composite materials, such as steel sheet’s
corrosion rust, intolerant aging, coating peeling off, big noise in wind and
rain environment, etc.
And also have
solved the problems of FRP corrugated sheets for uneven thickness, rough, low
weather-ability, film easy aging off, flammable, easy chalking and cracking,
and no hydrofluoric resistance, etc.
Widely used for
light steel structure building, factories, farmers' markets, garages, parking,
villas, agricultural greenhouse, chemical industries, grain storage, new rural
reconstruction, fence construction, prefabricated houses, stadiums, waiting
FUGU Anti corrosion Roof Sheets are light at weight (3.4KG/Square Meter), low comprehensive cost.
Customized(<5700mm for 20’Container <11700mm for 40’ container)
Stable Geometry Performance, Excellent High And Low Temperature Resistance
FUGU Anti corrosion Roof Sheets are soiled and
shaped under the average production temperature of 192℃. After testing, the heat distortion temperature is
higher than 250℃ and the thermal
expansion coefficient is 1.92X10-5/℃-1. There is no
crack, hollowing, bubble and peeling off after 30 times’ freezing cycle
testing. Therefore there is no droop, swell and deformation during use.
Excellent Weather Resistance
by fluorocarbon coating and polyester felt, ensure long lifetime and still keep
the stability even chronically exposure in the environments of UV, hot, cold,
damp and corrosive.( △E < 5 via CN10000 hours’ weather resistance test by CNAC, accordance with Nation Technical Standard. Note: 10000 hours in lab is equal to 28 years in nature environment.)
Excellent Corrosion Resistance
The materials of FUGU Anti corrosion Roof Sheet itself have the
natural anti-corrosion characteristics. There is no obvious change after
soaking 120 hours in the solutions of 15% hydrochloric acid, 20% sulfuric acid,
40% hydrofluoric acid, 15% silicofluoric acid, 20% phosphate, 20% nitrate, 5%
sodium hydroxide and ammonia.
Strong Wind Resistance
FUGU Anti corrosion Roof Sheets themselves are
tough and compact which can withstand 2000pa wind pressure (equal to wind grade
Excellent Anti-Hail Performance
There is no
broken and damage within 50mm hails for FUGU Anti corrosion Roof Sheets have adopted non-alkali fiberglass chopped
stitch felt as reinforced material with high impact-resistance. Test with 1KG
steel ball free falling from 3M height, no any breaking.
Excellent Load-Carrying Performance
advanced composite pultrusion technology, with excellent mechanical strength
and physical properties.
Choose Anti-Corrosion Polyester Sheets for
All your Heavy Duty Roofing Requirements
As a leading
professional manufacturer and supplier of building materials, Hefei FUGU
Building Material Co. Ltd. offers quality polyester anti-corrosion roof sheets
with high performance values and outstanding customer service. Our products are
manufactured with superior design, raw materials and advanced composite
pultrusion technology which have enabled them to overcome many drawbacks
associated with other composite materials.
Superior to Other Roofing Materials
Being a premier
anti-corrosion polyester sheets supplier, we understand that developing a
quality product is a multi-step process, with special emphasis on selection of
raw materials. For our anti-corrosion polyester sheets, we use unsaturated
polyester resin as main ingredient, non-alkali fiber glass chopped stitch felt
for reinforcement and weather resistant felt for superior outdoor performance.
Our sheets come with fluorocarbon coating for long lasting stability and
beauty. We have successfully overcome shortfalls of other materials including
anti-corrosion steel sheets that display poor noise resistance, weather
elements resistance and inferior aging properties. Our products are superior to
FRP corrugated sheets that possess undesirable features such as uneven thickness,
imperfect weather performance, poor aging, flammability and fragility.
Matchless Anti-Corrosion Property
We are currently
offering anti-corrosion polyester roof sheets in two designs. No matter which
design you choose, the fundamental product benefits remain the same. The most
important benefit is their outstanding corrosion resistance. We have tested
them extensively and found that there is no significant change even after
soaking them for 120 hours in various chemical solutions such as 15% hydrochloric
acid, 40% hydrofluoric acid, 20% sulfuric acid, 20% phosphate, 20% nitrate, 15%
silicofluoric acid, 5% ammonia and 5% sodium hydroxide. Added to this is their
superior mechanical and physical strength characteristics which make wonderful
choices for heavy duty applications in chemical factories.
Excellent Temperature Resistance
remarkable feature of FUGU anti-corrosion polyester sheets is their superb
resistance to extreme high and low temperatures. During manufacturing process,
these sheets are shaped under high temperatures of up to 192 C and high
pressure of 8000KG tensile force. Even with rigorous testing that includes 30
times freezing cycle, they do not display any bubbling, peeling, cracking or
hollowing. Hence, we guarantee that there will be stable geometry and no
drooping, swelling or deformation during use.
Superlative Natural Elements Resistance
As a trusted
supplier of anti-corrosion roof sheets, we have incorporated many superior
characteristics such as fluorocarbon coating and polyester felt for enhanced
protection and weather resistance. Even with chronic exposure to UV, humidity,
heat and cold, our materials are able to hold their stability. Being tough and
compact, they can withstand winds of up to grade 10. Due to their high impact
resistance property, they do no suffer any breakage or damage even when
bombarded with 50 mm hailstones. In fact, tests have shown that even a 1 kg
steel ball free falling on them from a height of 3 meters does not cause any
Due to all the
above mentioned product features, our polyester anti-corrosion roof sheets are
suitable for a wide array of uses such as in light steel structure buildings,
warehouses, chemical industries, greenhouses, villas, garages and shaded
parking areas, farmers’ markets, stadiums, shelters, prefabricated houses, wall
cladding and rural constructions to name a few. Contact us to know how you can
order our lasting value anti-corrosion polyester sheets!
