Home Products Sewage Treatment System Aeration(Air) Disc, Aeration(Air) Pipe Sewage Treatment Hose Nano Micro Bubble

Sewage Treatment Hose Nano Micro Bubble Air Oxygen Aeration Membrane Pond Fish Farming Aero Tube Diffuser

  • Product Item：FG-ADΦ215
  • Item Name:Air Bubble Diffuser
  • Material:EPDM, Polyethylene Film
  • Diameter:215mm, 260mm, 300mm
  • Application:Wastewater Treatment
    • Aeration Tube  , Tube Aeration Bubble Diffuser  , Disc Diffuser Pipe
    Inquiry Send Email

    Description

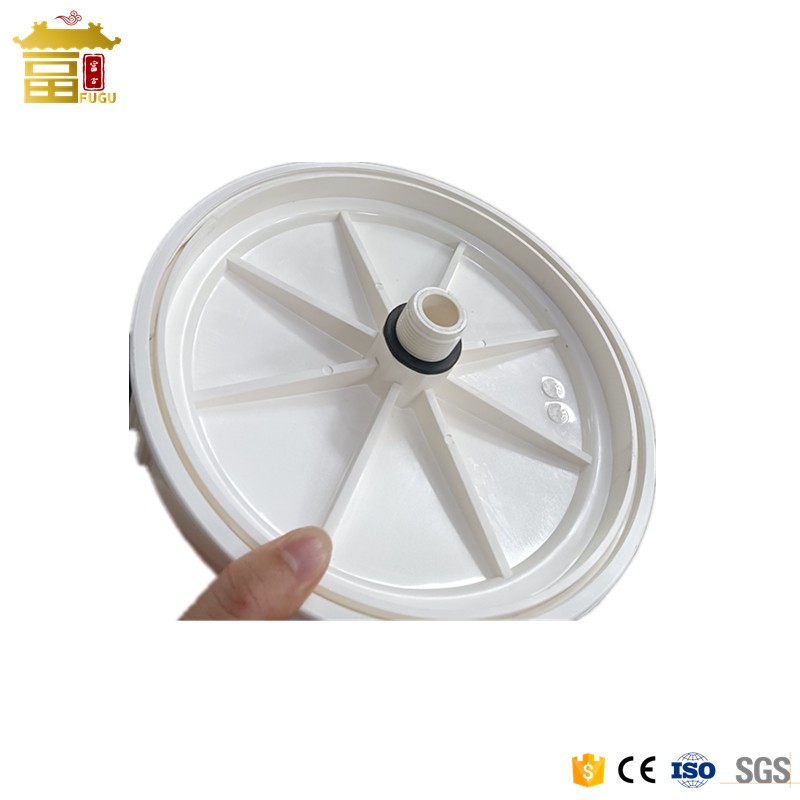

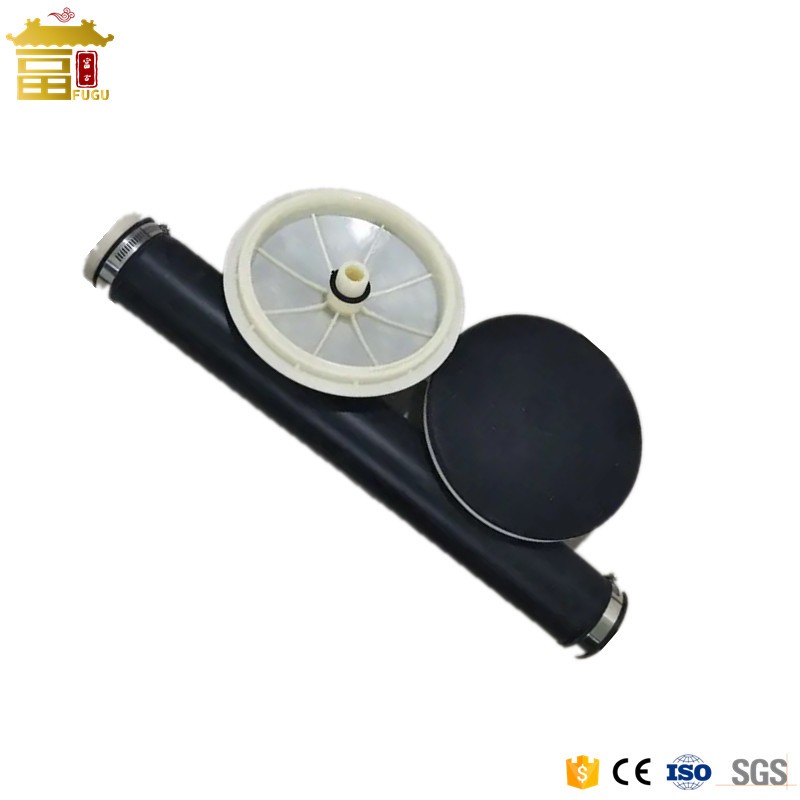

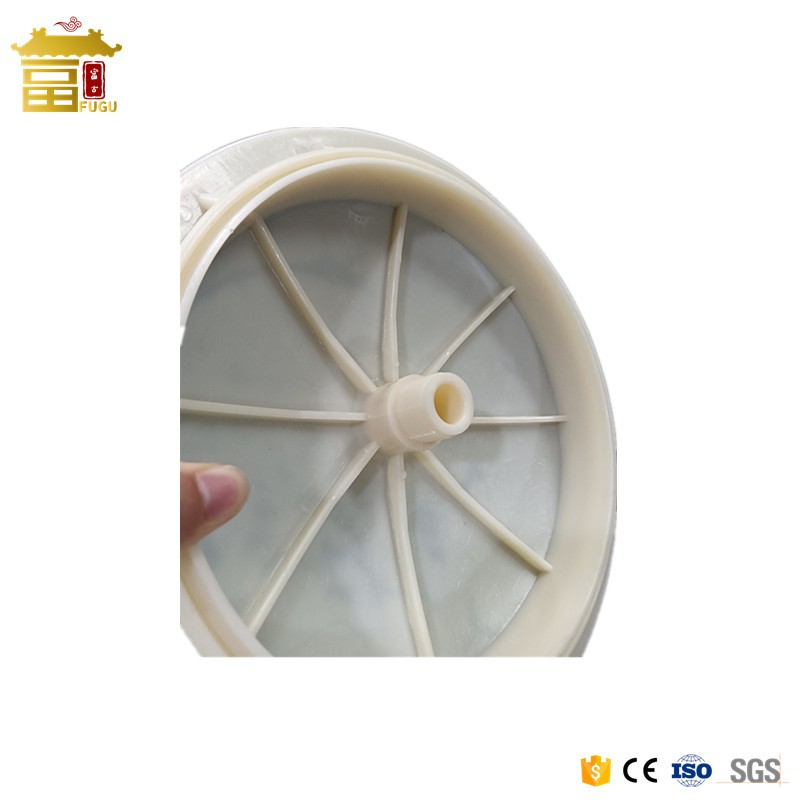

    EPDM Aeration Disc Diffuser for Lakes and Aquarium or Water Treatment Disc
    Product Description
    Air disc fine bubble diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. BENENV air discfine bubble diffuser series combine effective design, low installation costs,reliability and high performance in the intermittent and continuous aeration process, special designed the slits cut opining. patterns and spacing between the slits for high oxygen transfer and long time operation.
    Specification
    EPDM fine bubble air diffuser model
    Dia215mm
    Dia260mm
    Dia300mm
    Working air flow (M3/h)
    1.5-3
    2-5
    2-8
    Designed air flow (M3/h)
    2
    3
    4
    Service Area(M2/pc)
    0.25-0.45
    0.35-0.65
    0.45-0.75
    Oxygen Utilization ratio(%)
    ≥30%
    ≥30%
    ≥30%
    Oxygen capability (kg02/h)
    0.15-0.45
    0.18-0.45
    4-80.25-0.5
    Water submerged depth (M)
    4-8
    4-8
